Features

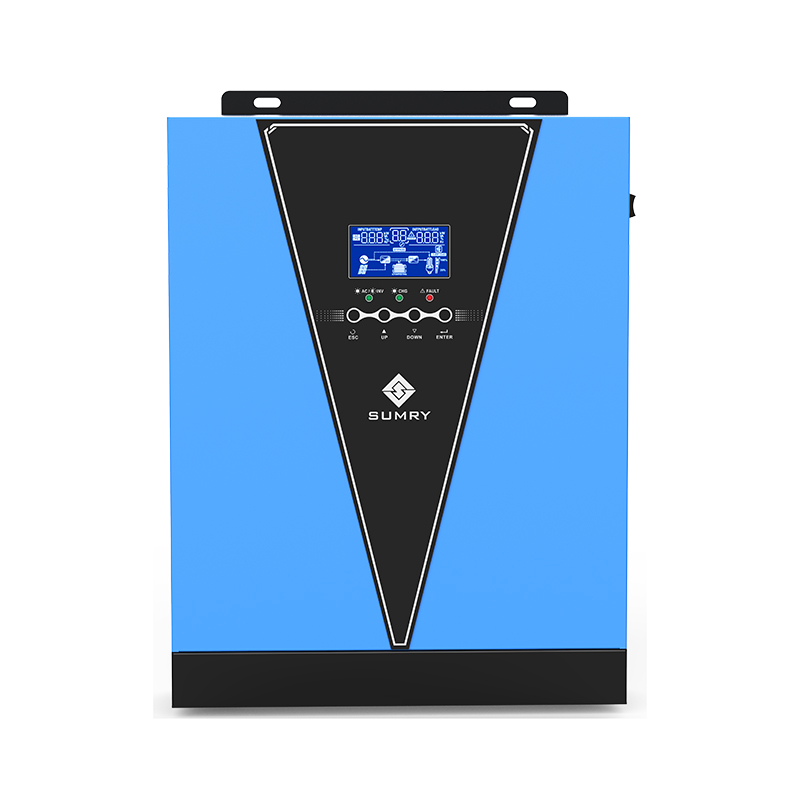

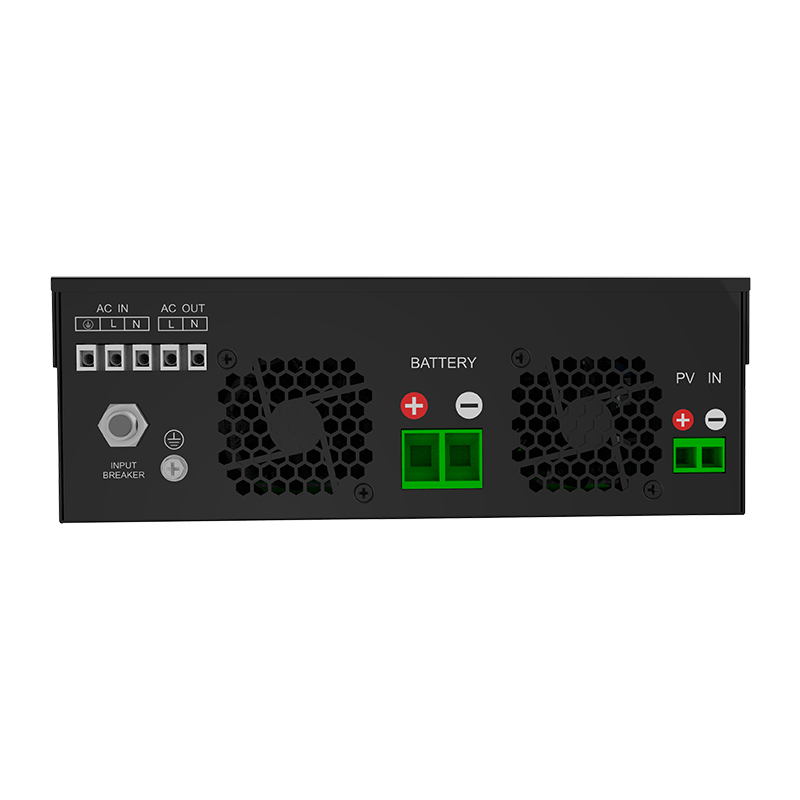

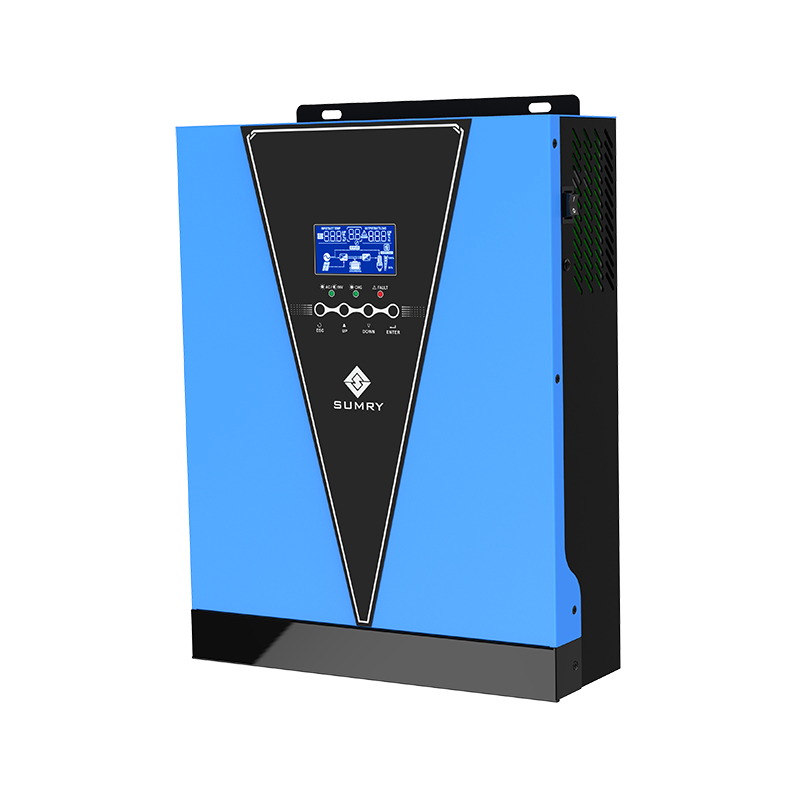

Pure sine wave inverter
Built-in MPPT solar charge controller
Selectable input voltage range for home appliances and personal computers
Selectable charging current based on applications
Configurable AC/Solar input priority via LCD setting
Compatible to mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Product Data Sheet
MODEL | HMS 1.5K-12 | HMS 1.5K-24 | HMS 3K-24 |
Rated Power | 1500VA/1200W | 3000VA/2400W | |
INPUT | |||
Voltage | 230VAC | ||
Selectable Voltage Range | 170-280VAC (for personal computers) | ||
Frequency Range | 50Hz/60Hz (Autosensing) | ||
OUTPUT | |||
AC Voltage Regulation (Batt. Mode) | 230VAC±5% | ||
Surge power. | 3000VA | 6000VA | |
Efficiency (Peak) | 90%-93% | 93% | |
Transfer Time | 10ms (for personal computers) | ||
Waveform | Pure Sine Wave | ||
BATTERY & AC CHARGER | |||
Battery Voltage | 12VDC | 24VDC | 24VDC |
Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC |
Overcharge Protection | 15.5VDC | 31VDC | 31VDC |
Maximum charge current | 20A/30A | 10A/20A | 20A/30A |
SOLAR CHARGER | |||
Maximum Charging Current | 40A | 40A | 40A |
Maximum PV Array Open Circuit Voltage | 102VDC | 102VDC | 102VDC |
MPPT Range @ Operating Voltage | 15-80VDC | 30-80VDC | 30-80VDC |
Standby Power Consumption | 2W | ||
Maximum PV Array Power | 500W | 1000W | 1000W |
Maximum Efficiency | 98% | ||
PHYSICAL | |||
Dimension. D*W*H(mm) | 305*300*110mm | 305*272*100mm | |
Net Weight（kg） | 4.5kg | 6.9kg | |
OPERATING ENVIRONMENT | |||
Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||
Operating Temperature | 0℃ to 55℃ | ||
Storage Temperature | -15℃ to 60°C | ||
